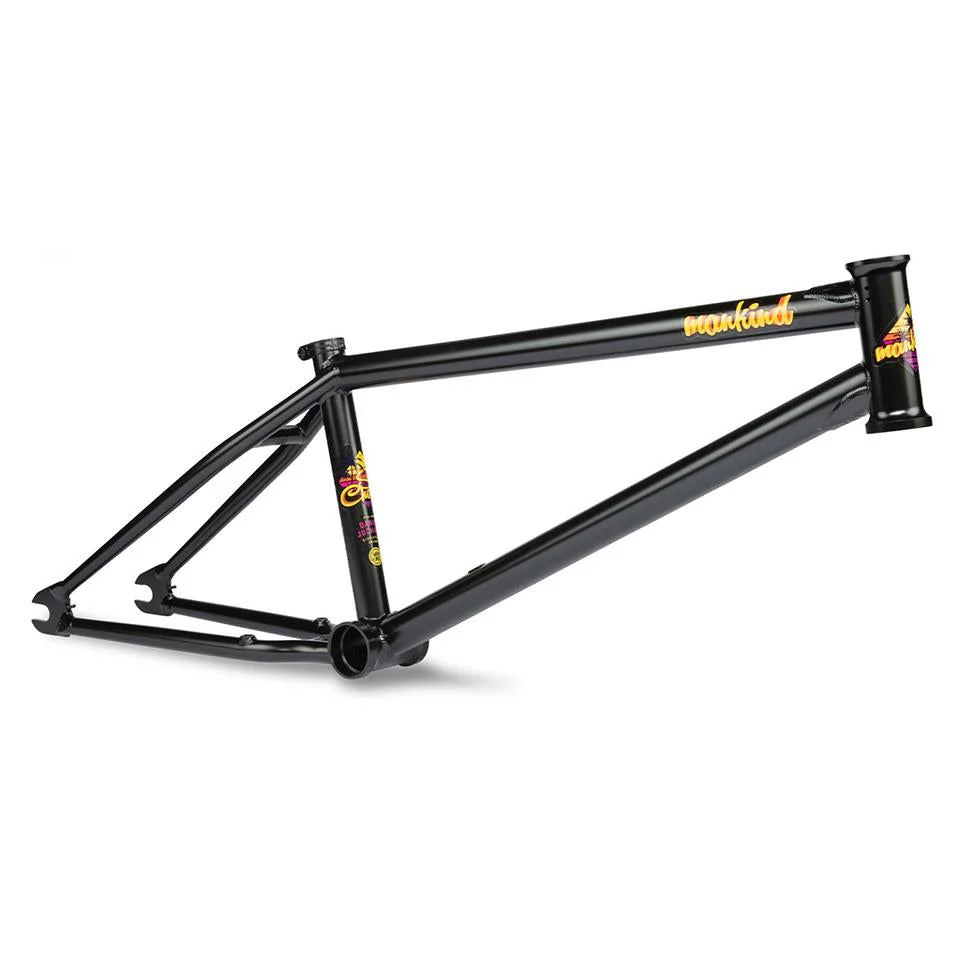

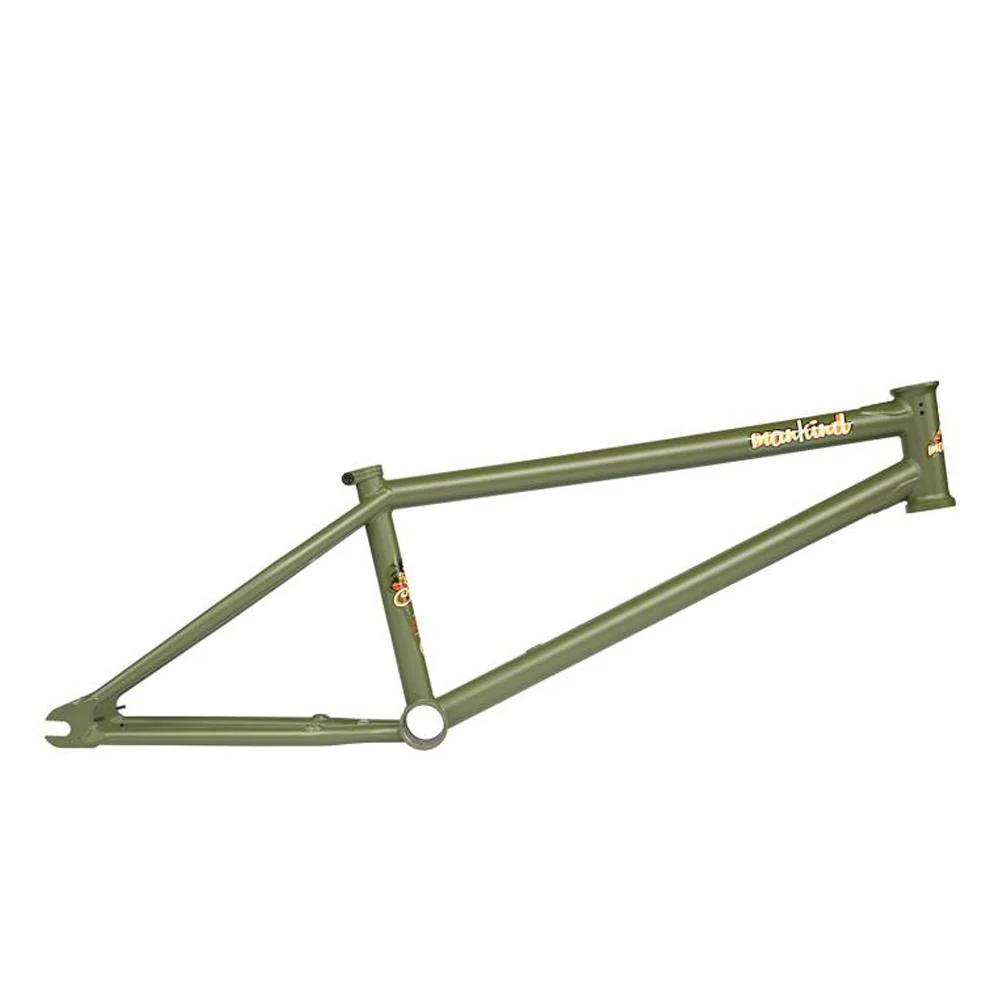

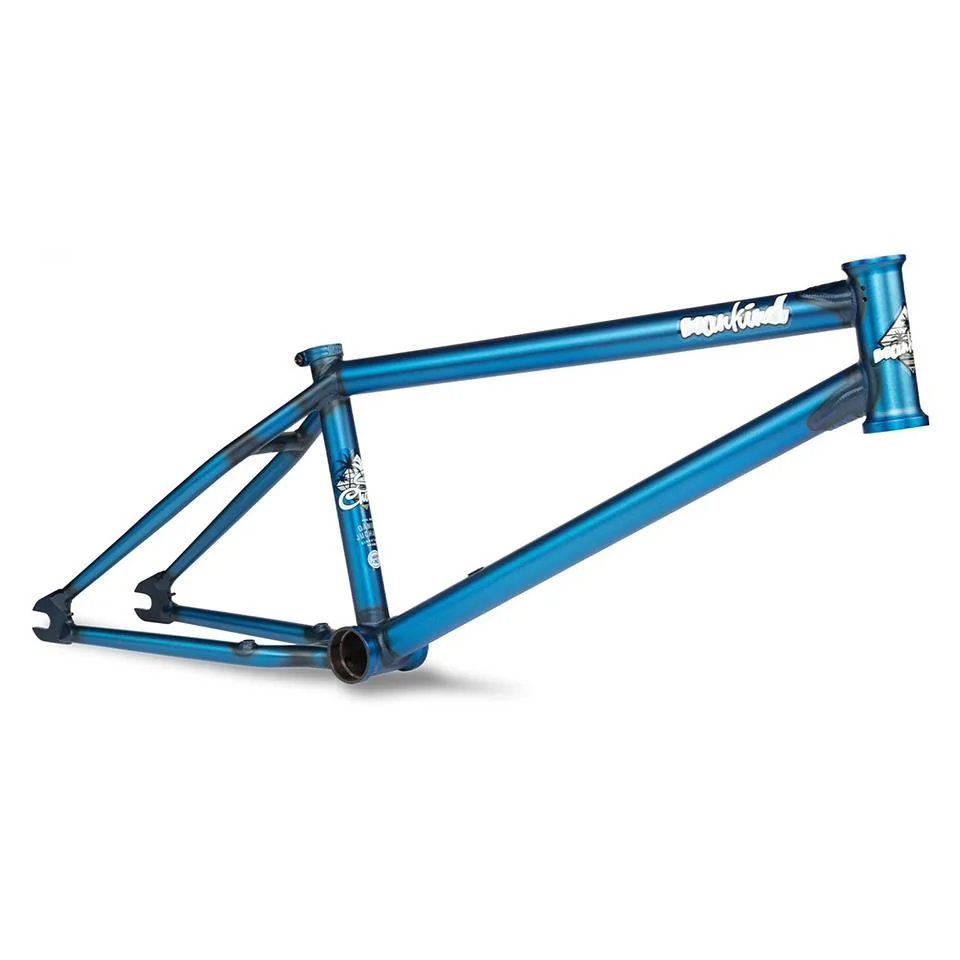

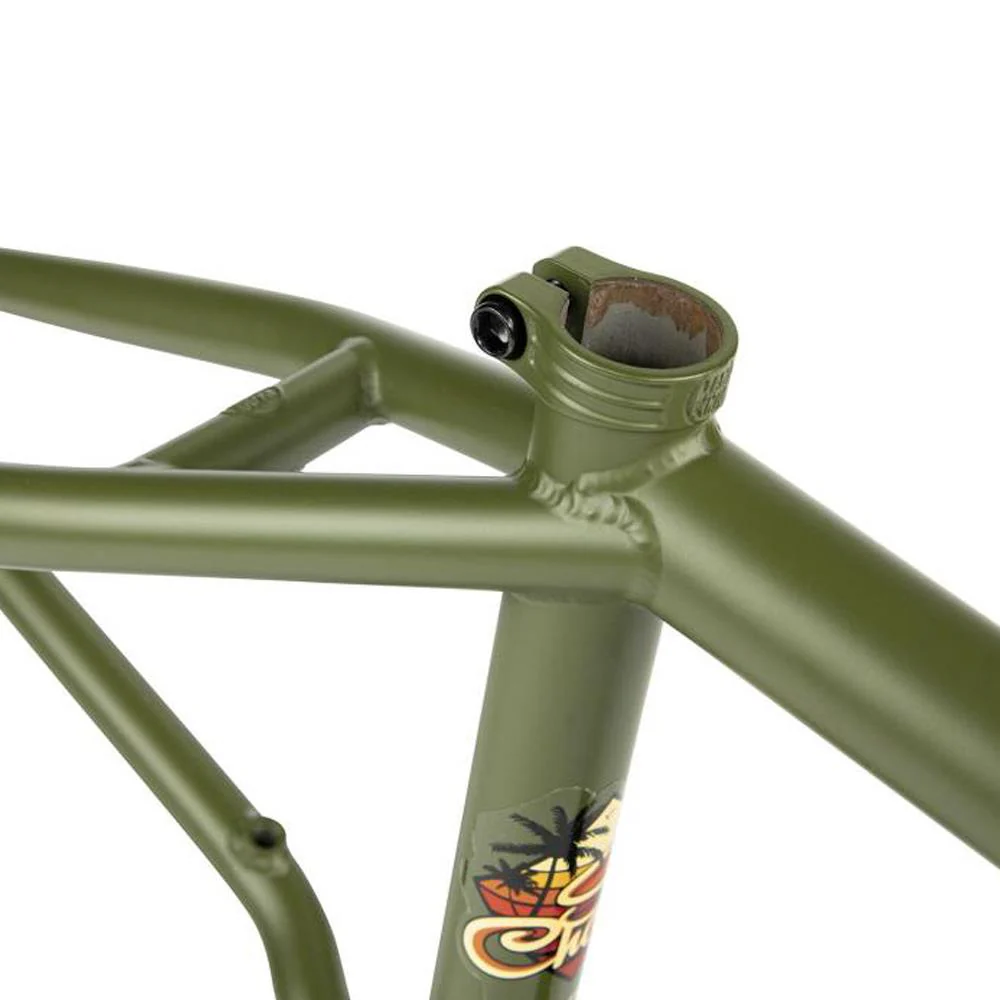

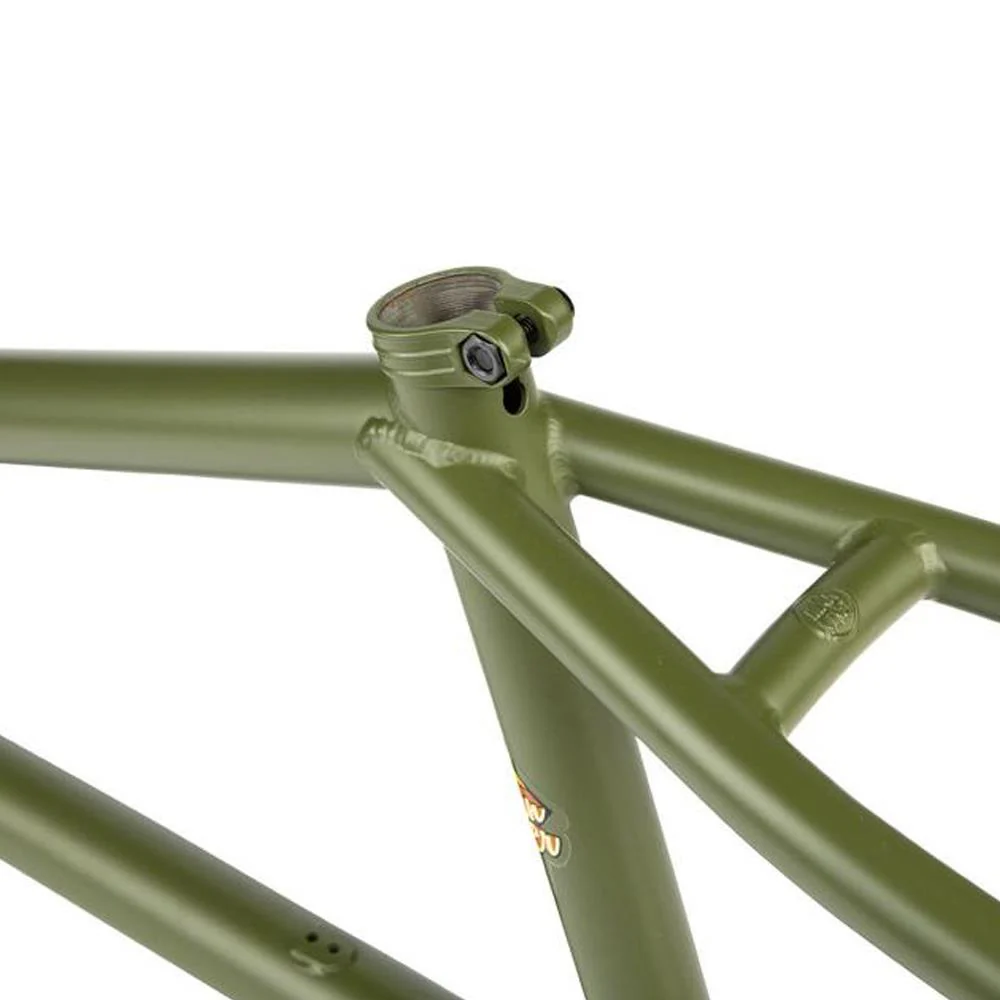

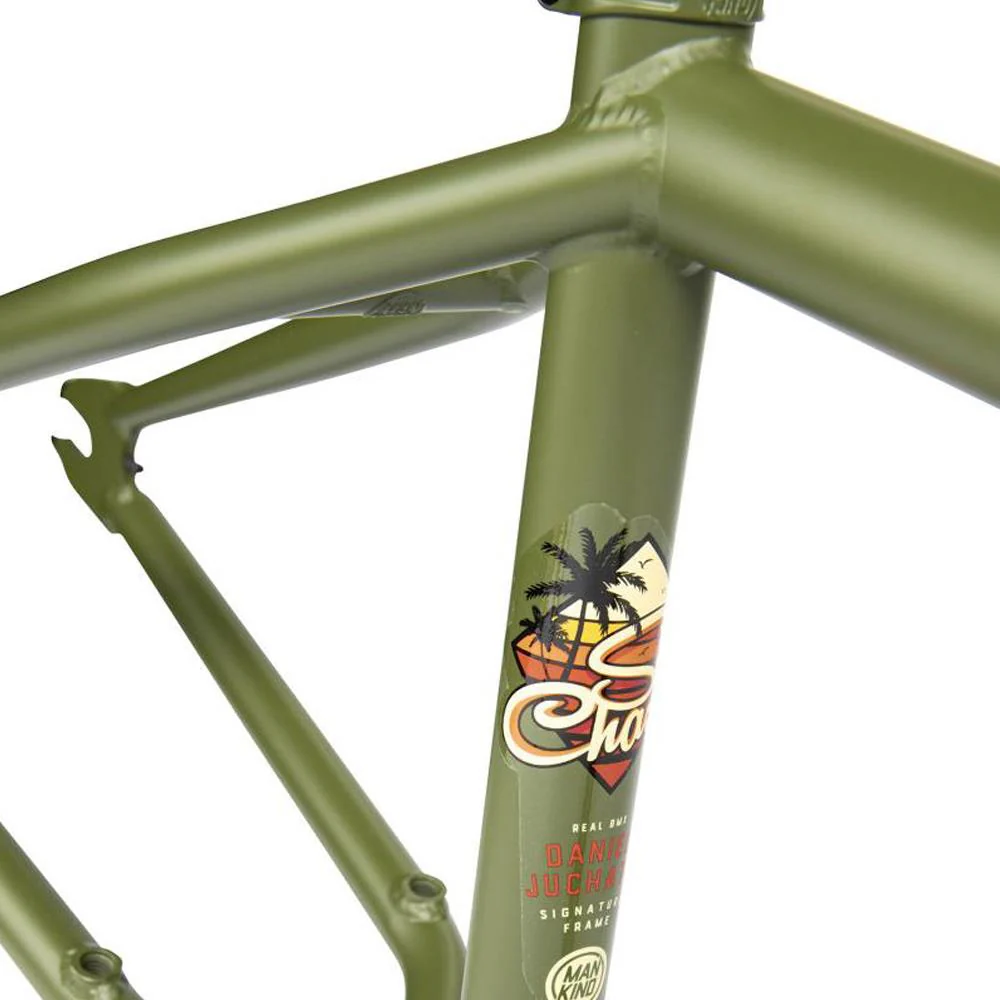

Daniel Juchatz's signature frame from Mankind, the Sunchaser! Designed for trails and bowls riding, this machine has classic mellow geometry with a 74.5° head tube angle, 11.5“ BB height and 13.75“ chain stay Length (middle of dropout) and removable U-Brake mounts (not included) on the chain stay. To complete this frame Mankind added their integrated Epoch seat clamp, Integrated chain tensioners and a Mankind down tube gusset.

###section###

Product Specs

1. MATERIAL: Full 4130 chromoly Sanko Japanese tubing
2. HEAD TUBE ANGLE: 74.5°
3. SEAT TUBE ANGLE: 71°
4. CHAIN STAY LENGTH: 13.75” middle of dropout / 13.5” slammed
5. BB HEIGHT: 11.5"
6. WHEEL SIZE: 20"
7. STANDOVER HEIGHT: 9"
8. DROPOUT SIZE: 14mm

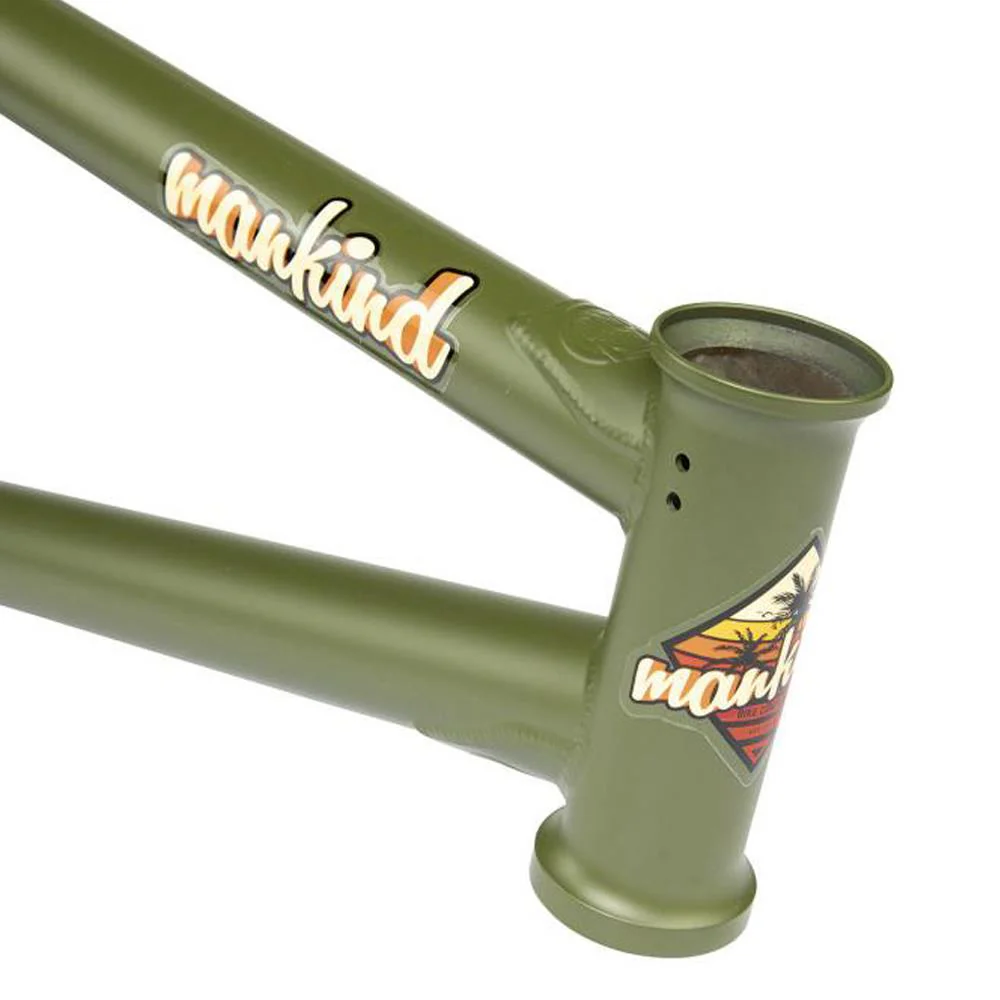

9. HEADSET TYPE: Integrated

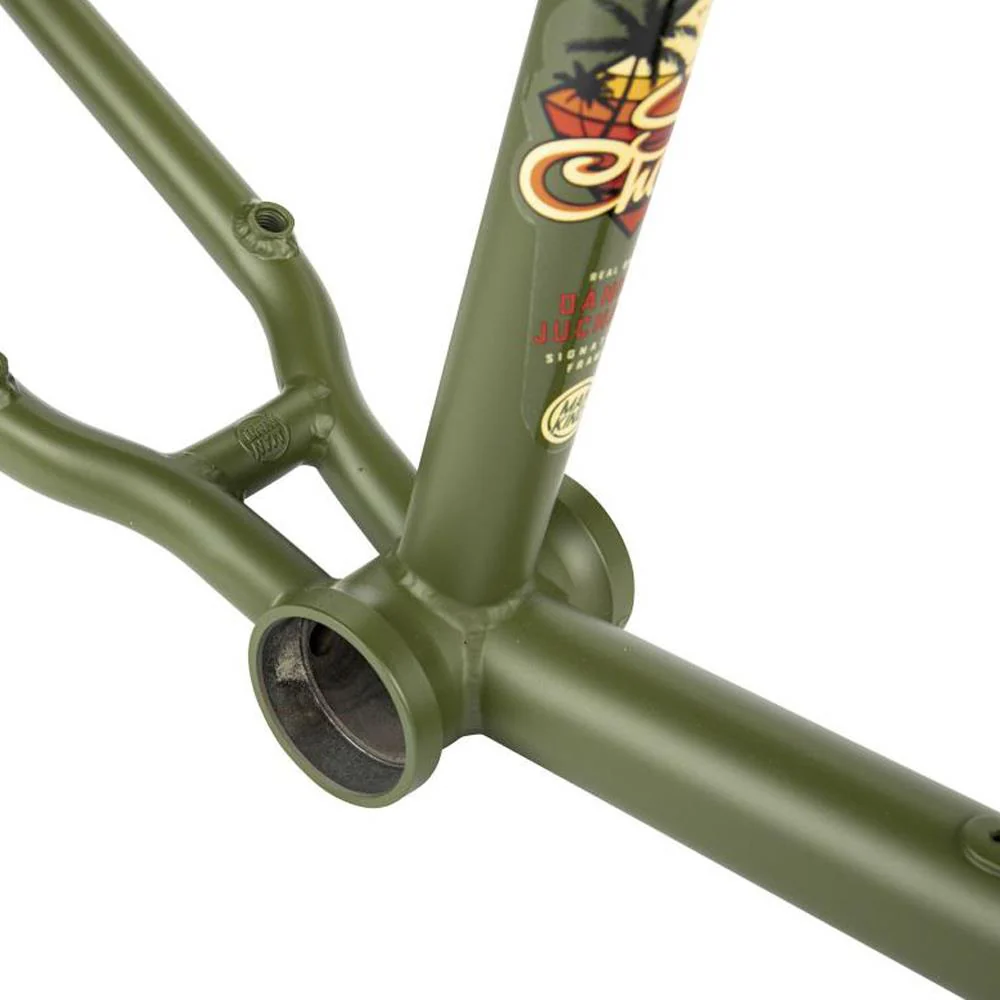

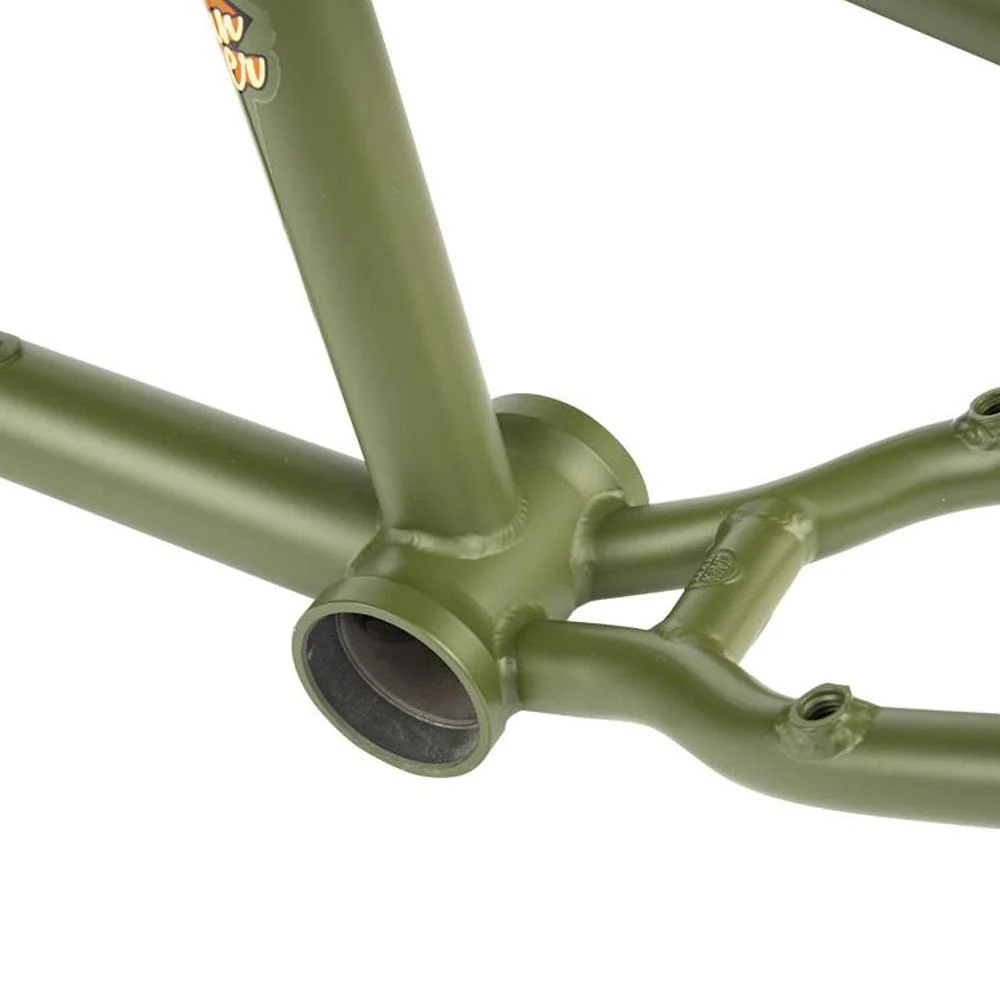

10. BB TYPE: Mid
11. BRAKE MOUNTS: Removable
12. GYRO TABS: Removable
13. WEIGHT: 4.63lbs

###section###

Product Highlights

• Longer Backend and Mellow Headtube Angle for stability
• Best suited for Trails and riding Fast

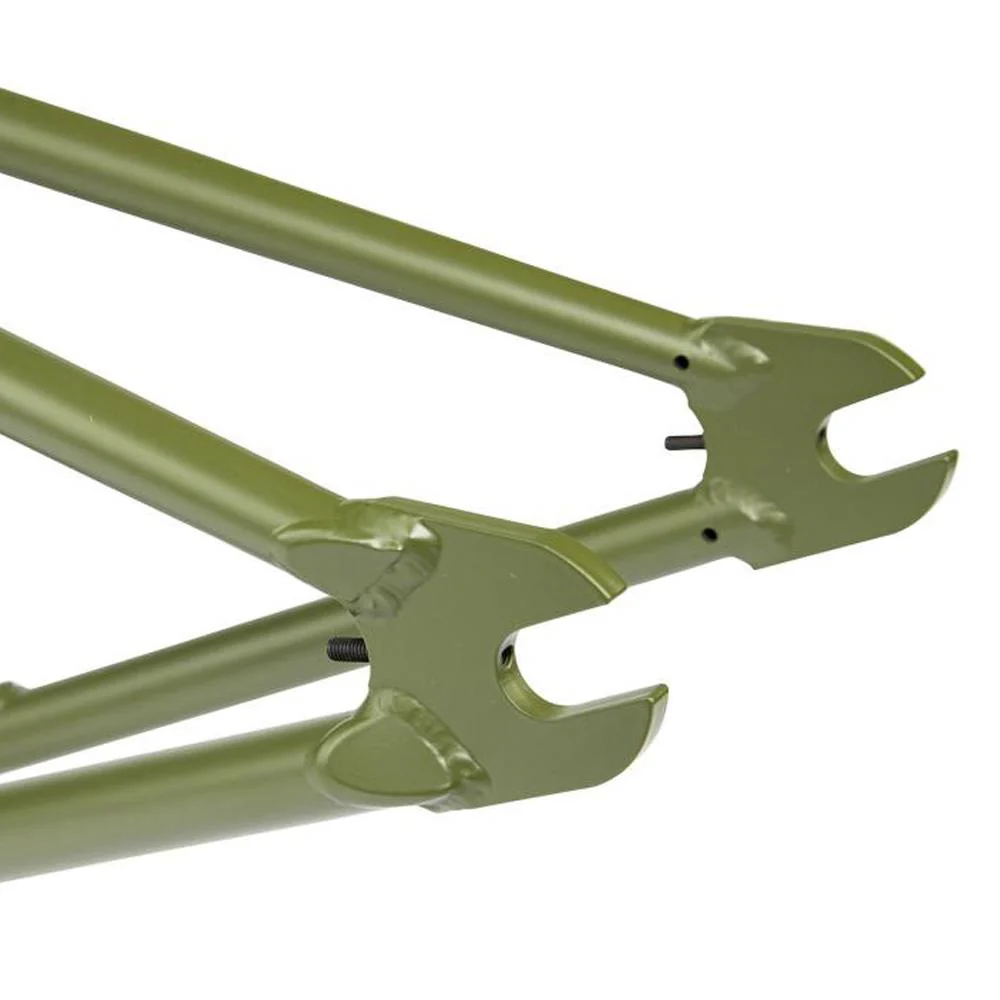

• Built in chain tensioners
• Gusseted tubing for added strength
• Removable brake hardware
